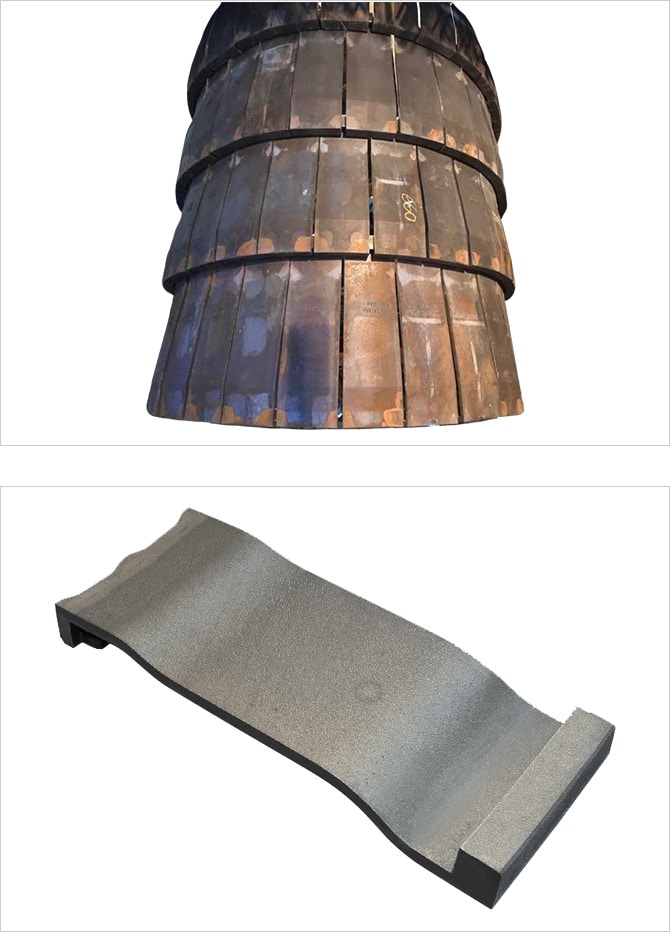

Thimble Segments for Cement Industry
Our thimble segments hold products suitable for the customer's use environment in each stage (thickness, length, material), We check the thickness and actual corrosion during outage to propose optimization.
Features
The diameter of our thimble segments is between φ2300-5300 (±50 mm in the circumferential direction and ±200 mm height direction relative to the existing thimble size) and can be installed in any dimension.
| Length | Thickness | Unit Weight |
|---|---|---|
| 760mm | 20mm | 46kg |
| 16mm | 37kg | |
| 660mm | 20mm | 41kg |
| 16mm | 33.5kg |
Applications
We own original material that is ideal for thimble segments
| Material Name | Main Chemical Components (%) | |||
|---|---|---|---|---|
| C | Cr | Ni | その他 | |
| HB508 | 0.2～0.4 |
18～23 |
8～12 |
Including |
| HB512 | 0.2～0.4 |
24～28 |
11～14 |
- |
| HB515L | 0.08～0.15 |
22～25 |
14.5～16 |
Including |
| HB525D | 0.25～0.35 |
23～25 |
23～25 |
Including |
| PH35 | 0.35～0.75 |
24～27 |
33～37 |
Including |
